DeviceJockey Guide
Swaps and SwapTables
Replace fixed text with named values that can change while your setup is running.
Dynamic runtime values
Change one value without editing every control.
A Swap is a named value. You can insert its name into supported titles, commands, events, paths, payloads, and Scripts. DeviceJockey replaces the placeholder with the Swap’s current value when the property is evaluated.
This is useful whenever several controls should use the same value or when that value needs to change during Live Mode.
SwapA named runtime value such as
SceneA = Scene 1.PlaceholderA reference such as
\(SceneA) that is replaced with the current value.SwapTableA group used to organize related Swaps.
A SwapTable is not another kind of value.
Commands and events use individual Swaps. The SwapTable only keeps related Swaps together so they are easier to find and maintain.
Example
Reuse one OBS scene button.

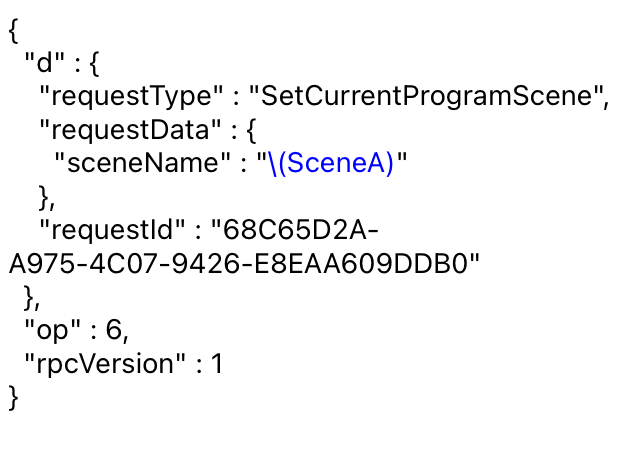

The command contains a placeholder.
sceneName: "\(SceneA)"
If SceneA contains Scene 2, the same command selects Scene 2.
The command configuration stays unchanged.
Only the value stored in SceneA changes. Every supported place using \(SceneA) receives the new value.
Create a Swap
Add a table, then add its Swaps.
1
Open Swap tables

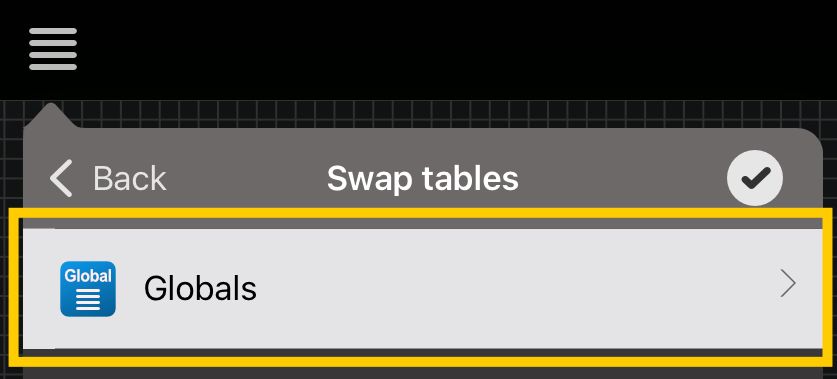

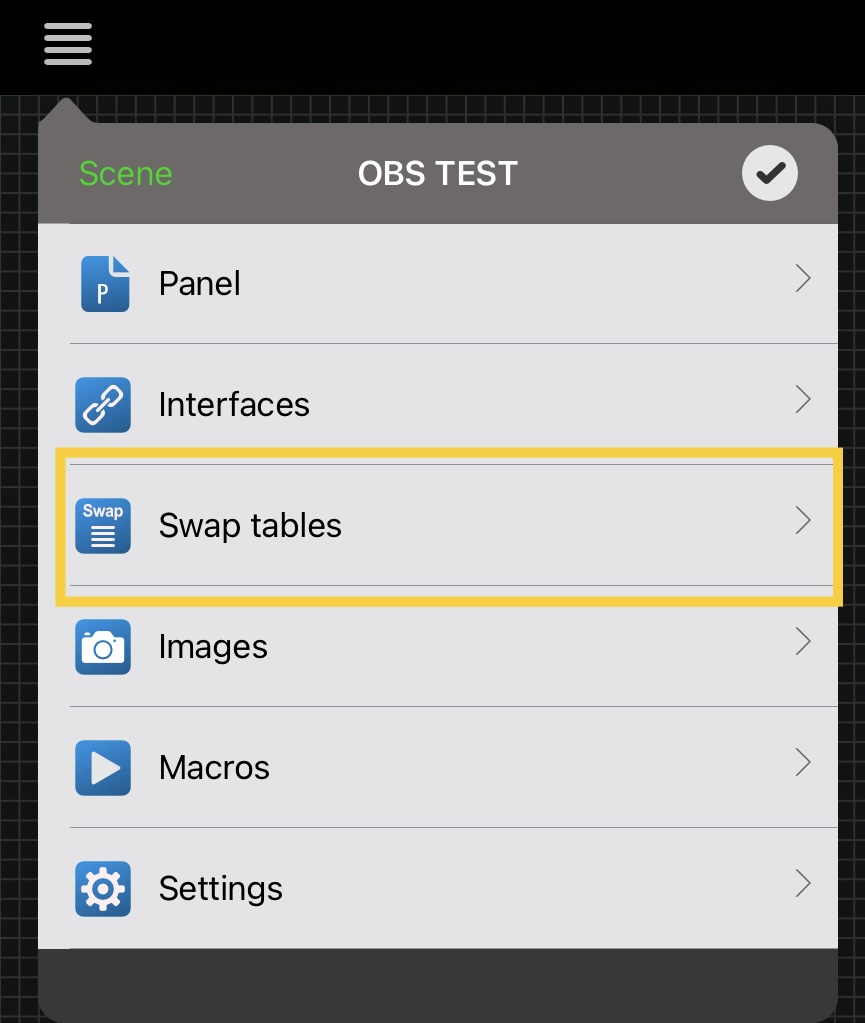

Open the main menu and choose Swap tables, then open Globals.
2
Add a table
Create a table with a clear purpose, such as OBS Scenes, Cameras, or Destinations.
3
Add a Swap
Enter a unique Swap name and its initial value.
4
Use its placeholder
Insert the Swap into a supported field and test the resolved value in Live Mode.
SwapTables belong to the current scene.
The app loads the global SwapTables stored with the active scene. Use consistent names when different scenes should provide equivalent values.

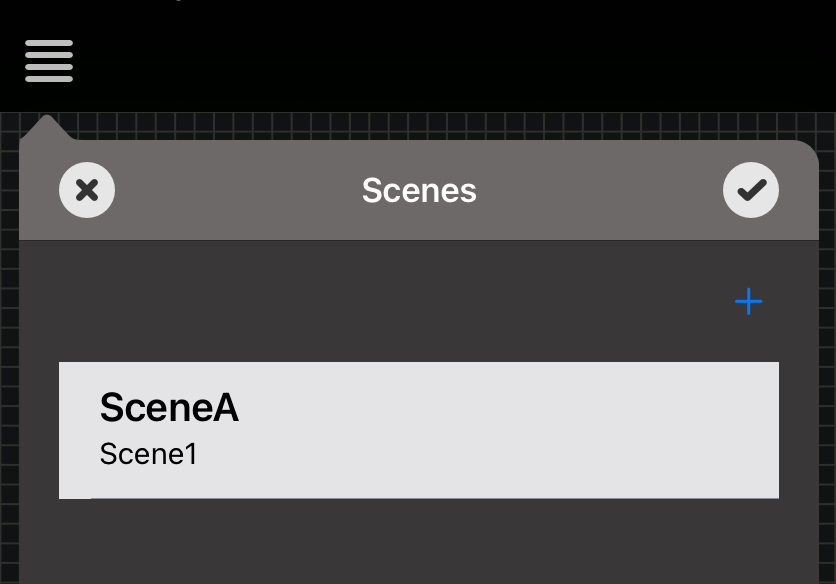

SceneA stores the value Scene1.Syntax
Write the name inside \( ).

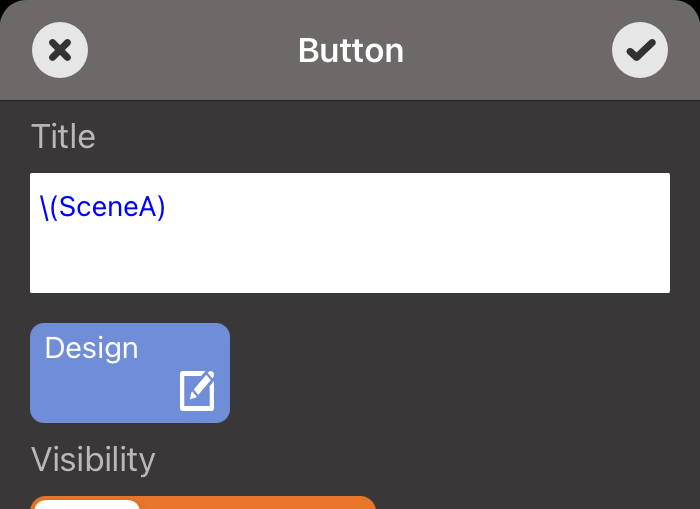

\(SceneA)The placeholder starts with a backslash and an opening parenthesis, followed by the exact Swap name and a closing parenthesis. In supported editors, a recognized Swap expression is highlighted.
Current scene: \(SceneA) combines normal text with the current Swap value.
\(SceneA) lets the Swap provide the entire title, path, payload value, or supported parameter.
A Swap value may contain another Swap expression. DeviceJockey can resolve the referenced value where replacement is supported.
Use the placeholder only where replacement is expected.
When a setting asks you to select or name the Swap itself, enter SceneA without \( ).
\(SceneA) placeholder.
Change values from a panel
Update Swaps without returning to the table editor.
Write a fixed value, use the item title, or open an input window in Live Mode. The current Swap value is shown as the starting input.
Map the position of a slider or another continuous item between a configured minimum and maximum and store the result.
Compare the current value with a configured value and send the Boolean result to a Local response path.
Panel Check Status is normally useful.
When enabled, items that depend on the changed Swap check their status again. Disable it only when an immediate panel refresh is intentionally unwanted.
Events
Let item state depend on a Swap value.
Swap events compare a selected Swap with a configured value. Depending on the item and event property, the result can update a light, toggle or radio-button state, protection, a default position, or trigger a tap, long press, or touch action.
Light the button whose configured value matches the current Swap.
Switch a supported toggle or radio button on when the comparison is true.
Protect an item or trigger a supported touch action from the comparison result.
Available reactions depend on the item.
DeviceJockey presents only the Swap event variants supported by the selected item and property.
Swaps and Scripts
Use the correct form for each context.
Use the placeholder syntax.
\(mySwap)Use this form in supported titles, command fields, event fields, addresses, and payloads.
Use the Swap name directly.
console.log(mySwap)
mySwap = "New value"Scripts expose valid Swap names as variables. Built-in function and status names are reserved.
Do not confuse them
Swaps and Shared Values solve different problems.
Runtime data.
A Swap stores a named value that commands, events, titles, paths, payloads, and Scripts can use while the scene runs.
An editing view.
Shared Values collect related settings from selected items, commands, and events so they can be edited together.
Open the Shared Values guide →Troubleshooting
If a Swap is not replaced or does not update the panel.
Check the syntax.
Use exactly \(SwapName), including the backslash and both parentheses.
Check the name.
Names must match exactly. Confirm that the Swap exists in a SwapTable of the active scene.
Check the field.
Not every text field supports replacement. A recognized Swap is highlighted in supported editors.
Distinguish reference from selection.
Enter the plain name when a command asks which Swap to change. Use placeholder syntax when its value should be inserted.
Check reserved names.
Do not use names reserved for Script functions, MIDI values, received values, or item status variables.
Check panel status.
Enable Panel Check Status when dependent lights, labels, protection, or item states should update immediately.
Check nested values.
If one Swap contains another placeholder, confirm that both names exist and that the consuming context resolves nested replacement.
